Voopoo - PnP Coils
IN STOCK AND READY TO SHIP OR COLLECT
- SKU
- Voopoo - PnP Coils
Stock Availability
| Resistance | Status | |
|---|---|---|
| Available Unavailable |
Description / Voopoo - PnP Coils

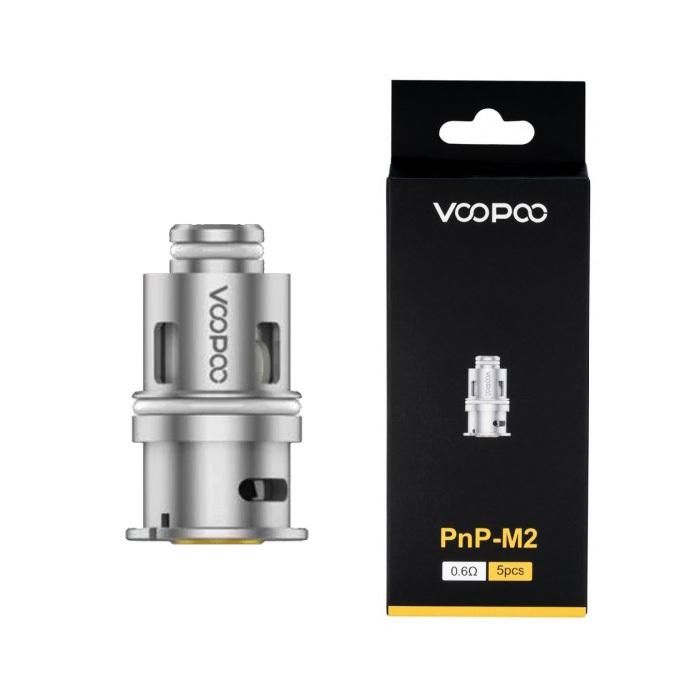

Voopoo PnP Replacement Coils
The PnP platform is the reason so many people stay with Voopoo: one coil fitting spans the Drag and Vinci ranges, so upgrading your device does not strand your spares. The range runs from a tight 1.2Ω mouth-to-lung coil right up to a 0.15Ω mesh, which means the same kit can give you a cigarette-like draw on nic salts or full sub-ohm clouds depending on which coil you drop in.
Key Features:
Fits the whole PnP platform - Drag and Vinci series
Six resistances from 1.2Ω MTL to 0.15Ω sub-ohm mesh
Press-fit design - no threading, the coil pushes straight into the pod
Mesh builds on the VM and TM coils for faster ramp-up and better flavour
Organic cotton wicking
Sold in packs, so you are not reordering every fortnight
Coil Options & Specifications:
PnP-TR1 1.2Ω Regular Coil: 10–15W, the tightest draw in the range, and the one to pick for 20mg nic salts
PnP-R2 1.0Ω Dual Coil: 10–15W, a mouth-to-lung draw with a touch more warmth than the TR1
PnP-TM2 0.8Ω Single Mesh: 12–18W, the middle ground - looser than MTL, still gentle on liquid
PnP-VM1 0.3Ω Single Mesh: 32–40W, the step up into sub-ohm, warm without being fierce
PnP-VM5 0.2Ω Mesh: 40–60W, proper clouds and a warm, open draw
PnP-VM6 0.15Ω Mesh: 60–80W, the most vapour in the range, and the thirstiest for both liquid and battery
Fits:
Drag X, Drag S, Drag Max, Drag E60, Vinci, Vinci X, Vinci Q and Vinci Air.
Package Contents:
5 x Voopoo PnP Replacement Coils (VM1 supplied singly)
Before You Buy:
PnP and PnP X are not the same coil. The later Drags - X2, S2, X3, S3, Drag 5 - take PnP X cartridges and will not accept these. If you are unsure which your device uses, our coil finder will tell you from the device name.
Match the coil to your liquid, not just your device: anything at 0.3Ω or below wants high-VG liquid at 3mg or 6mg, and running 20mg salts through a sub-ohm coil will be unpleasantly harsh. The 1.0Ω and 1.2Ω are the ones for salts.
Key Features
- PnP-TR1
- 1.2 Ω Regular Coil 10–15W 50/50 or higher PG MTL
- PnP-R2
- 1.0 Ω Dual Coil 10–15W 50/50 MTL
- PnP-TM2
- 0.8 Ω Single Mesh 12–18W 50/50 to 70% VG Restricted DL
- PnP-VM1
- 0.3 Ω Single Mesh 32–40W ≥70% VG Restricted DTL
- PnP-VM5
- 0.2 Ω Mesh 40–60W ≥70% VG Sub-Ohm DTL
- PnP-VM6
- 0.15 Ω Mesh 60–80W ≥70% VG Sub-Ohm DTL
Which pods fit this
These fit every Voopoo PnP device — 8 of them.
- Drag X
- Drag S
- Drag Max
- Drag E60
- Vinci
- Vinci X
- Vinci Q
- Vinci Air
Voopoo PnP X do not fit. They are a separate platform — the pods are not interchangeable.
See everything that fits Voopoo PnP →Please Note:
The maximum volume of nicotine-containing e-liquid for sale in one refill container is 10ml and Nicotine strength has to be no more than 20mg/ml
